IoT Connectivity Infrastructure
The device can be remotely monitored and managed by connecting to the internet via LTE and Wi-Fi connectivity options.

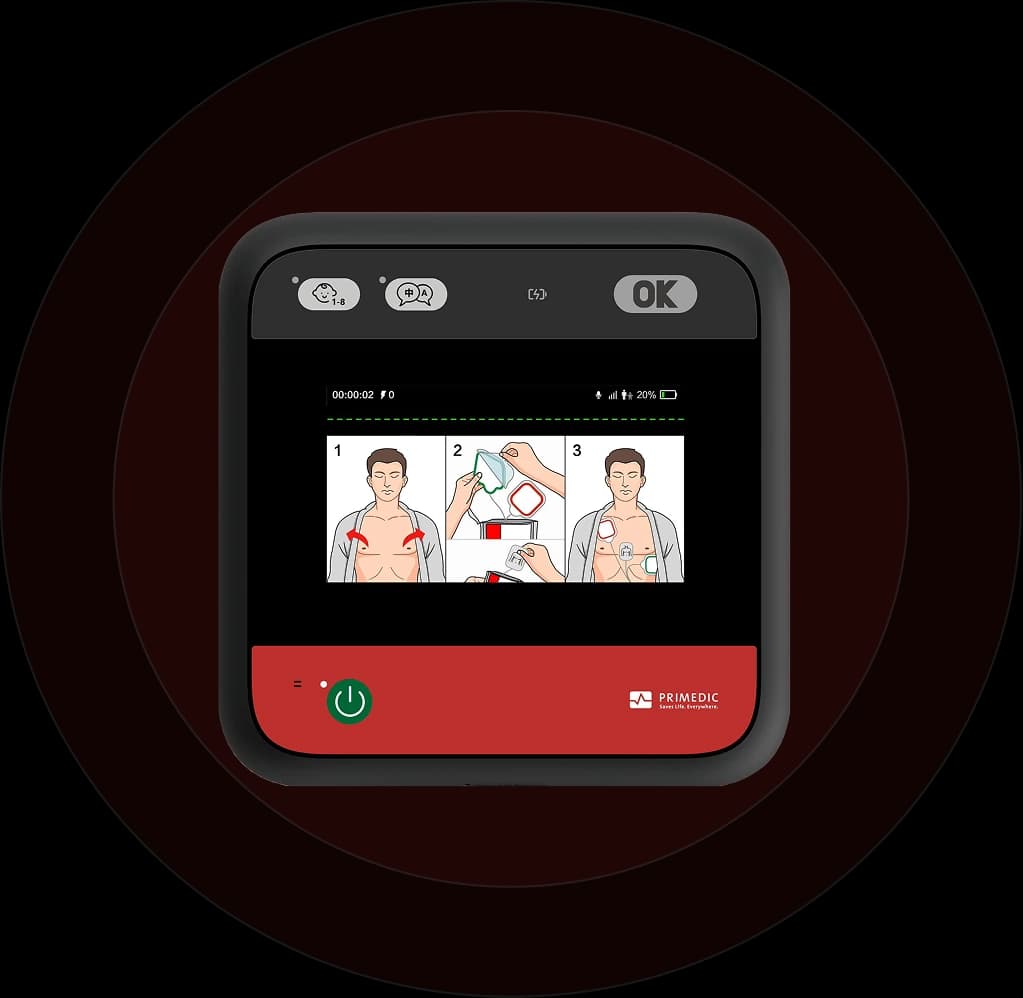

HeartSave myPAD
Designed for use in sudden cardiac arrest situations, the HeartSave myPAD analyzes the heart rhythm, delivers automatic defibrillation when necessary, and provides step-by-step guidance to the user for CPR administration.
Defibrillation Technology
Biphasic Defibrillation Waveform
Using a Biphasic Truncated Exponential (BTE) waveform, the current is delivered in two phases. The energy is automatically adjusted according to the patient's chest impedance.
Automatic Energy Optimization
The device measures impedance through the electrode pads. It optimizes the delivered defibrillation energy based on the individual patient.
Escalating Energy Delivery
Energy is incrementally escalated in adult patients. Shock efficacy is enhanced through 150 J → 170 J → 200 J levels.
Pediatric Mode
Pediatric mode is activated with a single button press. A safe shock energy of 50 J is delivered for pediatric patients. The CPR feedback function is disabled in this mode.
Rapid Analysis and Response Time
The heart rhythm is analyzed within 5–8 seconds. When a shockable rhythm is detected, the device is ready to intervene within 13–16 seconds.
Rhythm Analysis via ECG Signal
The system monitors a range of 30–300 bpm and measures impedance between 25–200 Ω. It provides safe analysis in compliance with the IEC 60601-2-4 standard.
Intelligent Rhythm Analysis Algorithm
Shockable Rhythms
The device automatically detects life-threatening rhythms. Ventricular fibrillation (VF) detection sensitivity is ≥ 90%, and pulseless ventricular tachycardia (VT) detection sensitivity is ≥ 75%.
Non-Shockable Rhythms
Normal rhythms are differentiated to prevent unnecessary shock delivery. Sinus rhythm specificity is ≥ 99%, and asystole specificity is ≥ 95%.
Algorithm Performance
The risk of unnecessary shock delivery is extremely low. The positive predictive value is 98.2%, and the false positive rate is 0.9%. Reliable rhythm analysis is ensured through high accuracy rates.

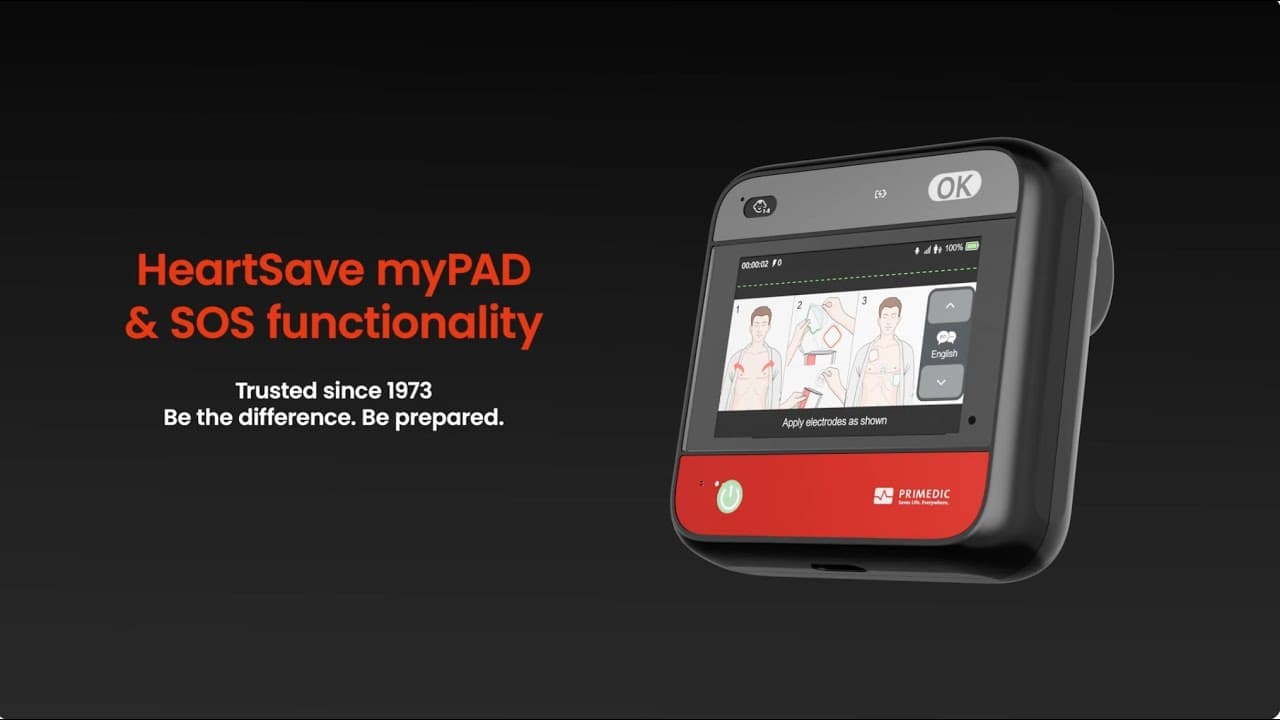

Discover the Device
Watch a brief introductory video to explore the HeartSave myPAD's workflow and the operating principle of the CPR feedback sensor.
Intelligent Connectivity and Device Management
With its IoT connectivity infrastructure, the HeartSave myPAD enables remote monitoring and management of devices, as well as secure recording of operational data. The cloud-based system ensures AED devices are always kept in a ready-to-use state.
Cloud Device Management
Multiple AED devices can be tracked from a centralized dashboard through the myAED Control platform.
Remote Management
Device settings and system configuration can be performed remotely via computer, tablet, or mobile device.
Cloud Notification System
Self-test results and potential fault conditions are transmitted to the cloud platform, and notifications are sent to the user.
Automatic Self-Test
The device performs daily and periodic automatic tests, checking the battery, electrode pads, and system modules.
Data Recording and Transfer
ECG, CPR, and event records are stored in the device memory and can be transferred via USB or cloud connection.
Advanced Technology for Reliable Intervention
Designed for use in sudden cardiac arrest situations, the HeartSave myPAD analyzes the heart rhythm, delivers automatic defibrillation when necessary, and provides step-by-step guidance to the user for CPR administration.

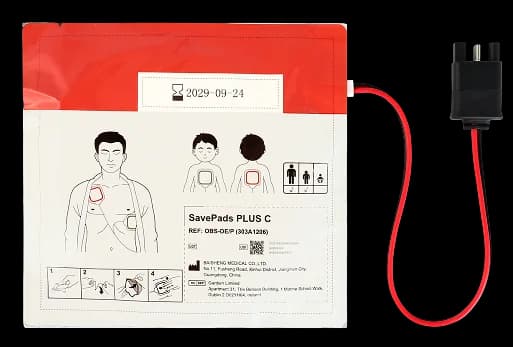

Defibrillation Electrode Pads
The SavePads PLUS electrode pads used with the HeartSave myPAD are designed to analyze the heart rhythm and safely deliver defibrillation energy to the patient.
- Electrode pad lifespan
- 5 Years
- Electrode pad surface area
- 86 ± 10 cm²
- Cable length
- 1.4 m
- Max. shock capacity
- 50 shocks

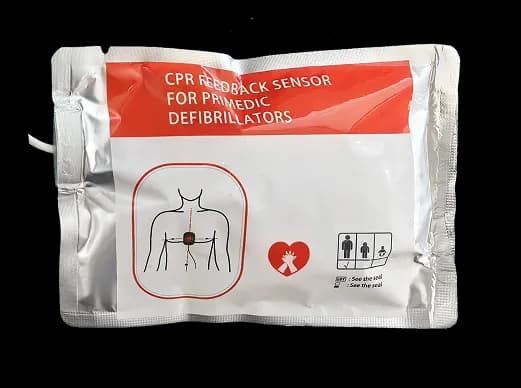

CPR Feedback Sensor
The sensor-equipped electrode pads measure the compression rate and depth applied during chest compressions, providing the user with real-time feedback for proper CPR administration.
- Compression rate range
- 100–120 cpm
- Compression depth
- 50–60 mm
- Compression rate accuracy
- ±3 cpm
- Depth accuracy
- ±5 mm / ±10%
HeartSave myPad
Individual and Institutional AED Solutions
Contact us to learn more about Primedic defibrillator solutions for workplaces, institutions, and individual users, and to place an order.
